Details

---

DESCRIPTION

The LED Thermohygro Clock Display is designed for continuous monitoring of temperature and humidity in industrial and controlled environments.

Featuring a large high-visibility LED display with programmable high/low alarms, it enables users to easily monitor environmental conditions in cold rooms, warehouses, laboratories, and production facilities.

Designed with protection against splash water, dust and corrosive conditions, the system is suitable for demanding applications requiring reliable long-term operation.

The external sensor provides accurate temperature and humidity readings, while optional features such as dew point, CO2, differential pressure, and calibration certification are available to support specialized monitoring requirements.

TECHNICAL DATA

SENSORS	Temperature:  -40 to 80.0 °C; ±0.2 °C Humidity: 0 %rh to 99.9 %rh; ±1.8 %rh
CLOCK	Year-Month-Date & 24HR Time (battery backup)

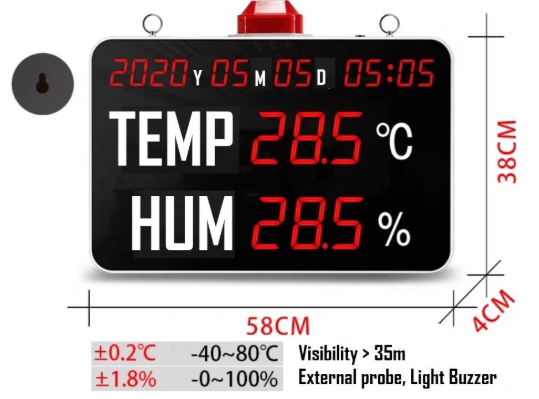

DIMENSION	380 x 580 x 40mm
CHARACTER HEIGHT	75mm
WEIGHT	~1000g
POWER SUPPLY	24Vdc/220Vac Power Adapter
OPERATIONAL TEMPERATURE	-30 to 60.0 °C (Main Display)
CONTROL	Button or Remote Control
ALARM	High/Low alarm Setting. Manual or Auto Off
CORRECTION	adjustable ±99
INSTALLATION	Wall or Ceiling Mounted
WARRANTY	1 Year
CALIBRATION	Optional SAMM ISO17025 Accredited Calibration Cert.
OTHER OPTIONS	Dew point, Noise, CO2, Barometer, Differential pressure & ..etc.
