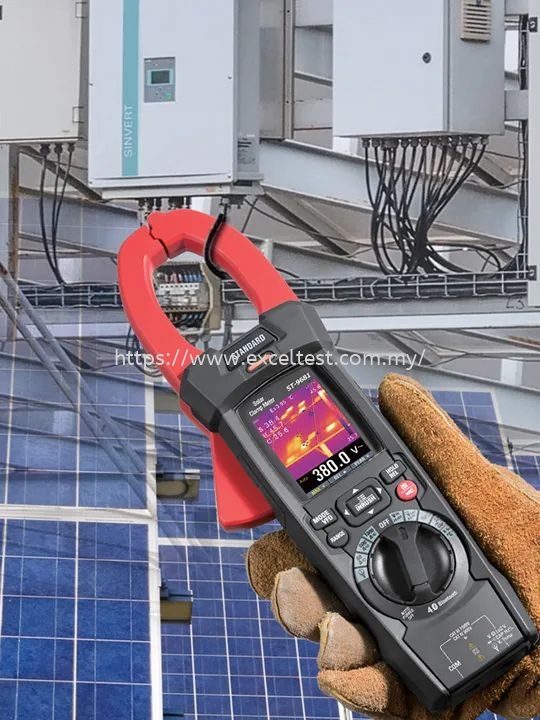

DT‑9582 CATIII 1500V Solar PV Power Clamp Meter with Thermal Camera | Advanced Solar PV Install & Services Equipment

---

📋 Product Description

The DT‑9582 CATIII 1500V Solar PV Power Clamp Meter with Thermal Camera is a professional‑grade instrument designed for Solar PV Install & Services Equipment applications. Combining high‑voltage measurement capability with advanced thermal imaging, it provides solar installers, technicians, and auditors with a complete solution for safe, accurate, and efficient photovoltaic (PV) system testing.

Key Highlights:

• ⚡ CATIII 1500V Safety Rating: Ensures safe operation in high‑voltage solar PV environments.
• 🌞 Solar PV Power Measurement: Accurately measures current, voltage, and power in PV installations.
• 🔥 Integrated Thermal Camera: Detects hotspots, faulty connections, and panel defects instantly.
• 📊 Comprehensive Performance Analysis: Identifies inefficiencies and optimizes PV system output.
• 🖥️ User‑Friendly Interface: Large display with intuitive menus for quick setup and easy operation.
• ✅ Durable & Certified: Built for long‑term use, aligned with CE and IEC standards for professional compliance.



---

Tags

1. #SolarPVInstall
2. #PVClampMeter
3. #ThermalCameraTools
4. #RenewableEnergySolutions
5. #SolarTestingEquipment

---

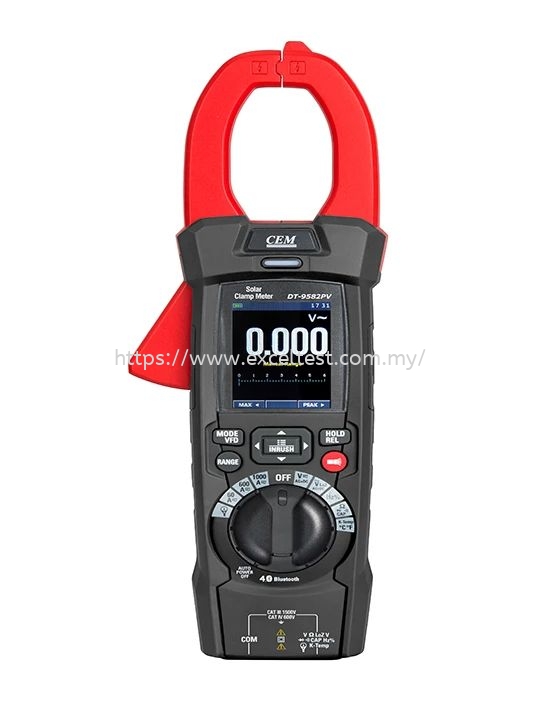

DT-9582PV CAT III 1500V Solar PV Clamp Meter with Thermal Camera

Professional Solar Clamp Meter for PV Installation, Troubleshooting & Thermal Inspection



The DT-9582PV Solar PV Clamp Meter with Thermal Imager is an advanced multifunction solar clamp meter engineered for photovoltaic (PV) installation, commissioning, troubleshooting, and preventive maintenance. Designed specifically for modern high-voltage solar systems up to CAT III 1500V, the DT-9582PV combines True RMS electrical measurements with a built-in infrared thermal imaging camera for fast, safe, and efficient diagnostics.

Ideal for solar installers, PV maintenance engineers, EPC contractors, and electrical professionals, the DT-9582PV enables users to detect electrical faults, overheating connections, unbalanced loads, inverter issues, and hot spots without direct contact.

With Bluetooth connectivity, data logging, trend capture, and thermal imaging capability, the DT-9582PV delivers a complete smart solar testing solution for today’s renewable energy industry. (CEM Test Instruments GmbH)

---

Why Choose the DT-9582PV Solar Clamp Meter?

Modern solar PV systems operate at increasingly higher DC voltages, requiring specialized instruments that provide high safety ratings, accurate measurements, and fast diagnostics. The DT-9582PV is built specifically for photovoltaic applications with CAT III 1500V protection and integrated thermal imaging technology.

Key Advantages

• CAT III 1500V safety rating for solar PV systems

• Built-in 120 × 120 infrared thermal imager

• True RMS AC/DC measurement accuracy

• Non-contact hot spot detection

• Bluetooth connectivity with smartphone app

• Data logging and trend capture

• Low pass filter (LPF) for VFD measurement

• Inrush current and peak capture function

• Rugged double-molded industrial housing

• Ideal for solar installation and maintenance work

---

Main Features of DT-9582PV

Built-in Infrared Thermal Imager

The integrated 120 × 120 thermal imaging camera allows technicians to quickly identify:

• Overheating terminals

• Loose electrical connections

• Hot spots on PV strings

• Inverter overheating

• Fuse and breaker failures

• Cable temperature abnormalities

Thermal inspection improves preventive maintenance and reduces system downtime by detecting problems before failure occurs.

CAT III 1500V Solar PV Measurement

Designed specifically for high-voltage photovoltaic systems, the DT-9582PV safely measures solar installations up to 1500V DC. This makes it suitable for:

• Commercial solar systems

• Industrial PV arrays

• Utility-scale solar farms

• String inverter systems

True RMS AC/DC Measurement

Provides highly accurate readings for:

• AC voltage

• DC voltage

• AC current

• DC current

• Mixed AC+DC signals

True RMS technology ensures reliable measurements even with distorted waveforms and inverter outputs. (CEM Test Instruments GmbH)

Low Pass Filter (LPF) for VFD Applications

The integrated low pass filter improves accuracy when measuring variable frequency drive (VFD) outputs and inverter-generated signals.

Bluetooth Smart Connectivity

Connect wirelessly to ThermView+ smartphone application for:

• Remote monitoring

• Thermal image analysis

• Documentation reporting

• Data sharing

• Trend analysis

Inrush Current & Peak Capture

Capture startup currents and transient electrical events with high-speed 500µS peak capture capability.

Large Color TFT Display

Features a 2.4-inch TFT color LCD with:

• 6000 counts display

• 240 × 320 pixel resolution

• Clear thermal image viewing

• Easy reading in outdoor environments

Flexible Current Probe Support

Optional flexible current probes extend AC measurement capability up to 3000A AC for industrial applications.

---

Applications

The DT-9582PV is suitable for:

• Solar PV installation

• Solar system commissioning

• Preventive maintenance inspection

• Thermal hot spot detection

• Inverter troubleshooting

• Electrical maintenance

• Industrial power diagnostics

• Renewable energy inspection

• Utility-scale solar farms

• Commercial rooftop solar systems

---

Technical Specifications

Thermal Imaging Specifications

Parameter	Specification
IR Resolution	120 × 120 pixels
Thermal Detection	Non-contact infrared imaging
Temperature Measurement	Thermal hot spot analysis
Display	2.4” TFT Color LCD

---

Electrical Measurement Specifications

DC Voltage

Parameter	Specification
Measurement Range	Up to 1500V DC
Safety Rating	CAT III 1500V
Measurement Type	True RMS

AC Voltage

Parameter	Specification
AC Voltage Range	Up to 1000V AC
Bandwidth	1kHz

Current Measurement

Parameter	Specification
AC/DC Current	True RMS
Jaw Opening	37mm
Flexible Probe Support	Up to 3000A AC

Additional Functions

Function	Description
Inrush Current	Yes
Peak Capture	500µS
Min/Max/Avg	Yes
Logging Function	Yes
Trend Capture	Yes
Bluetooth Connectivity	Yes
Flashlight	Built-in

---

Smart Solar Maintenance Tool

The DT-9582PV significantly improves maintenance efficiency by combining:

• Electrical testing

• Thermal imaging

• Wireless reporting

• Trend analysis

• Real-time diagnostics

This reduces troubleshooting time and enhances preventive maintenance capability for solar technicians and electrical engineers.

---

Ideal for Renewable Energy Professionals

Perfect for:

• Solar EPC contractors

• PV installers

• Renewable energy engineers

• Electrical maintenance teams

• Utility inspection contractors

• Solar asset managers

• Industrial electricians

---

Benefits of Thermal Imaging in Solar PV Inspection

Thermal imaging helps detect:

• Failing solar modules

• Faulty connectors

• Loose terminals

• Overheated cables

• Imbalanced PV strings

• Defective breakers and fuses

By identifying these problems early, users can reduce downtime, improve system efficiency, and prevent costly failures.

---



---
