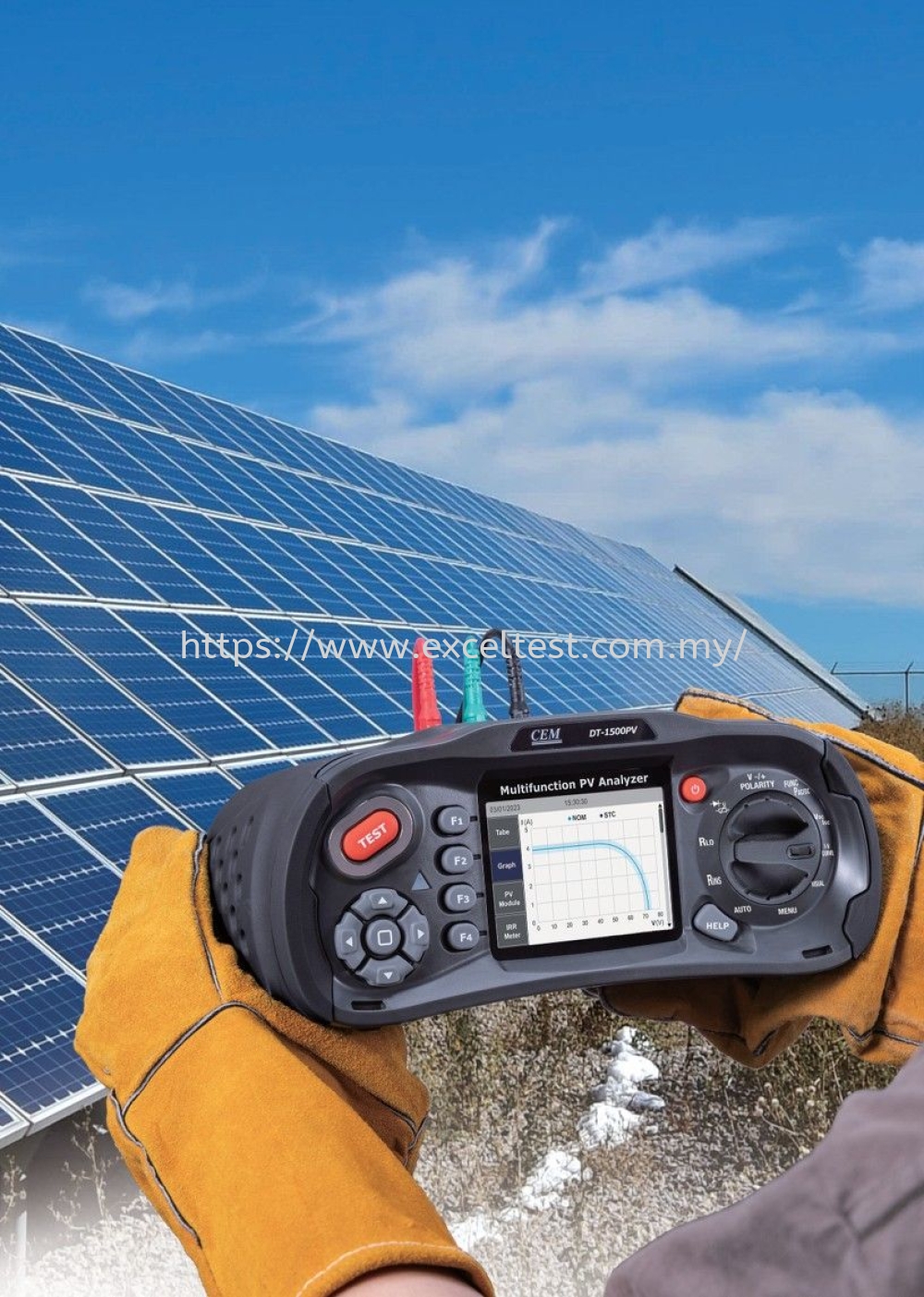

DT‑1500PV Multifunction PV Tester & Performance Analyzer | I‑V Curve Tracer for Solar PV Systems

---

📋 Product Description

The DT‑1500PV Multifunction PV Tester and Performance Analyzer is a professional tool engineered to deliver maximum value at an affordable price for solar installers, technicians, and energy auditors. Combining advanced testing capabilities with user‑friendly design, it ensures accurate performance analysis of photovoltaic (PV) systems, helping optimize efficiency and reliability.

Why It’s the Best Choice:

• 🔋 Comprehensive Testing: Performs I‑V curve tracing, insulation resistance, continuity, and PV string performance checks in one device.
• 🌞 High Accuracy & Reliability: Provides precise measurements for solar irradiance, voltage, current, and panel performance, ensuring dependable results.
• 📊 Performance Analyzer: Identifies system inefficiencies, shading issues, and panel mismatches to maximize energy yield.
• 💡 Affordable Excellence: Offers premium features at a competitive price point, making it the ideal balance of quality and cost‑effectiveness.
• 📡 Wireless Connectivity: Compatible with DT‑1317BT Solar Irradiance Meter for seamless data transfer and integrated reporting.
• 🖥️ User‑Friendly Interface: Large LCD display with intuitive menus for quick setup and easy operation on site.
• ✅ Certified Safety & Compliance: CE and TüV certified, meeting international standards for professional PV testing.

Applications:
Perfect for solar PV installation, commissioning, maintenance, and troubleshooting, the DT‑1500PV empowers professionals to deliver efficient, compliant, and high‑performance solar energy solutions.

---

#PVTester #IVCurveTracer #SolarPerformanceAnalyzer #SolarPVTesting #SolarEquipment #RenewableEnergyTools #PhotovoltaicAnalyzer #SolarInstallation

---

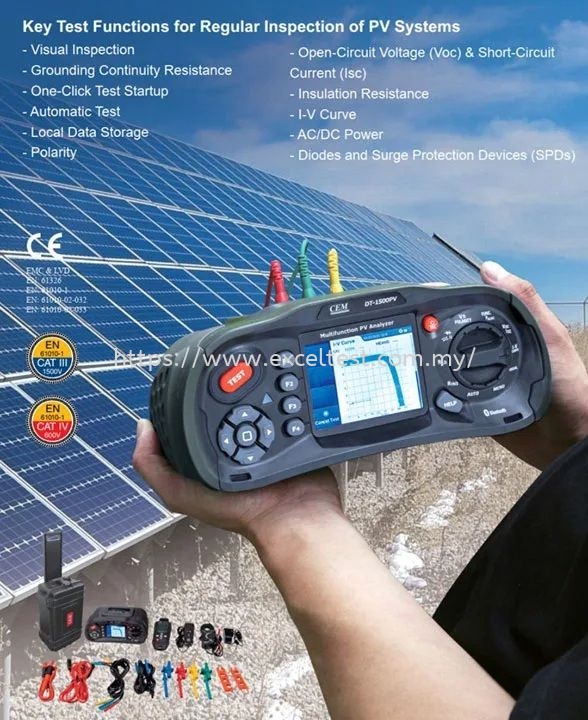

DT-1500PV Multifunction PV Tester & Performance Analyzer

Advanced I-V Curve Tracer for Solar PV System Testing up to 1500V DC

The DT-1500PV Multifunction PV Tester & Performance Analyzer is a professional all-in-one photovoltaic testing solution designed for solar installers, commissioning engineers, maintenance teams, and renewable energy professionals. Engineered to comply with IEC 62446-1 photovoltaic testing standards, the DT-1500PV simplifies installation verification, preventive maintenance, troubleshooting, and performance analysis of solar PV systems.

With integrated I-V Curve Tracing capability, the DT-1500PV allows users to compare measured performance directly against manufacturer specifications, helping identify module degradation, wiring issues, shading effects, and power loss instantly on-site.

Whether for residential rooftop systems, commercial solar farms, or industrial PV installations, the DT-1500PV delivers precise measurements, efficient diagnostics, and reliable documentation for complete PV system validation.

---

Why Choose the DT-1500PV PV Tester?

Complete All-in-One Solar PV Testing Solution

The DT-1500PV combines multiple essential photovoltaic test functions into a single portable instrument, reducing the need for multiple meters and improving field productivity.

Key Benefits:

• Supports PV system testing up to 1500V DC

• Integrated I-V Curve tracing and analysis

• IEC 62446-1 Category 1 & Category 2 compliance

• Fast commissioning and maintenance diagnostics

• Software-driven data management and reporting

• Rugged portable design for field applications

• Ideal for solar installers, EPC contractors, and maintenance teams

---

Key Features of DT-1500PV

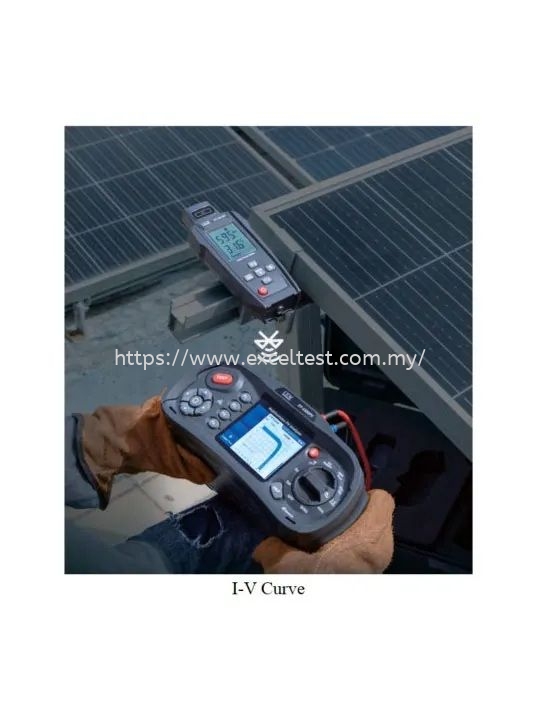

I-V Curve Tracing & Performance Analysis

Analyze the real operating condition of photovoltaic modules and strings using built-in I-V curve tracing technology. Compare measured curves against manufacturer reference data to quickly detect:

• Damaged solar panels

• Mismatch losses

• Shading issues

• Aging modules

• Connection faults

• Reduced power output

1500V DC Photovoltaic Testing

Designed for modern high-voltage solar installations with measurement capability up to 1500V DC.

Open Circuit Voltage (Voc) Measurement

Measure PV module and string open-circuit voltage accurately for commissioning and troubleshooting.

Short Circuit Current (Isc) Measurement

Measure short-circuit current up to 30A DC for performance verification and fault analysis.

Protective Conductor Resistance Testing (RLO)

Verify grounding continuity and safety compliance of photovoltaic systems.

Insulation Resistance Testing

Perform insulation resistance measurements with selectable test voltages:

• 50V

• 100V

• 250V

• 500V

• 1000V

AC/DC Voltage & Current Measurement

Supports both AC and DC electrical measurements using external clamp accessories.

AC/DC Power Measurement

Measure voltage, current, and power simultaneously for complete PV electrical analysis.

Blocking Diode & SPD Testing

Additional testing functions include:

• Blocking diode verification

• Surge Protection Device (SPD) testing

---

Applications

The DT-1500PV is ideal for:

• Solar PV installation commissioning

• Preventive maintenance inspections

• Solar farm performance diagnostics

• Rooftop PV system verification

• PV string troubleshooting

• Renewable energy audits

• Electrical safety inspections

• Solar EPC projects

---

Technical Specifications

PV Open Circuit Voltage (Voc)

Parameter	Specification
Measurement Range	0V – 1500V DC
Resolution	0.1V / 1V
Accuracy	± (0.5% + 2 Digit)
Polarity Test	Yes

PV Short Circuit Current (Isc)

Parameter	Specification
Measurement Range	0A – 30A DC
Resolution	0.1A
Accuracy	± (1% + 2 Digit)

Protective Conductor Resistance (RLO)

Parameter	Specification
Measurement Range	0.00Ω – 2000Ω
Test Current	≥ 200mA
Accuracy	± (2% to 5% + 2 Digit)

Insulation Resistance (RINS)

Parameter	Specification
Measurement Range	0.00MΩ – 999MΩ
Test Voltages	50V / 100V / 250V / 500V / 1000V
Maximum Current	1.5mA

AC/DC Voltage Measurement

Parameter	Specification
AC Voltage	0V – 1000V AC
DC Voltage	0V – 1500V DC
Accuracy	± (2.5% + 2 Digit)

Clamp Current Measurement

Parameter	Specification
DC Current	0A – 40A DC
AC/DC Clamp Current	0A – 400A AC/DC
Clamp Accuracy	± (2.5% + 0.03A)

AC/DC Power Measurement

Parameter	Specification
Power Range	0 – 600kW/kVA
Accuracy	± (7.5%VI + 0.6V + 0.2I)

---

Included Accessories

The DT-1500PV comes complete with:

• Test leads

• Type-C cable

• PC software

• Carrying trolley case

• Power adaptor

---

Built for Solar Professionals

The DT-1500PV is engineered for:

• Solar installers

• Electrical contractors

• PV maintenance engineers

• Renewable energy consultants

• Utility inspection teams

• EPC companies

• Solar asset managers

Its rugged portable design and comprehensive test capability make it an essential tool for modern photovoltaic system commissioning and maintenance.

---

IEC 62446-1 Compliant Solar PV Testing

The DT-1500PV supports photovoltaic testing according to IEC 62446-1 standards, helping professionals perform safe and compliant:

• Category 1 Tests

• Category 2 Tests

• Electrical verification

• System performance validation

---
