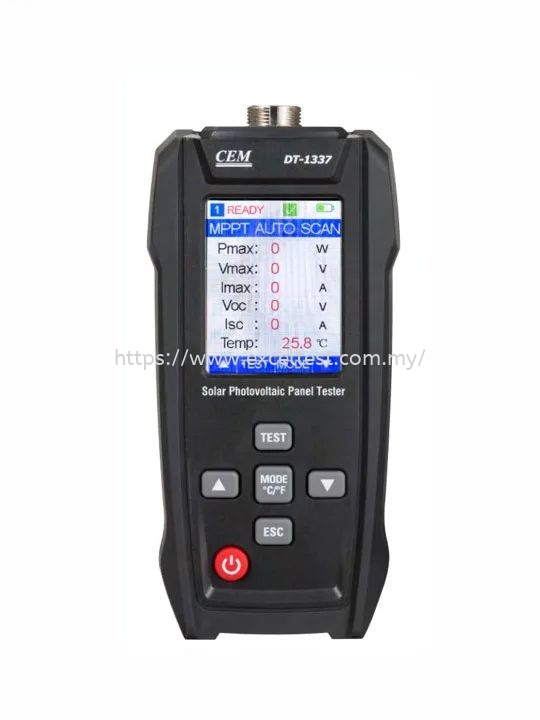

DT‑1337 Solar Photovoltaic Panel Tester – Pmax, Vmax, Imax, Voc, Isc & Temperature Measurement

---



📋 Product Description

The DT‑1337 Solar Photovoltaic Panel Tester is a professional, all‑in‑one diagnostic instrument designed for precise testing, monitoring, and performance evaluation of solar PV modules. With advanced measurement capabilities and built‑in safety features, it empowers solar installers, engineers, and maintenance teams to optimize energy output and ensure long‑term system reliability.

🔹 Measurement Capabilities

• Instant readings for Maximum Power (Pmax) and complete I‑V Curve analysis
• Voltage at MPPT point (Vmax) and Current at MPPT point (Imax) for system optimization
• Open Circuit Voltage (Voc) and Short Circuit Current (Isc) for module diagnostics
• Instrument Internal Temperature monitoring for stable operation

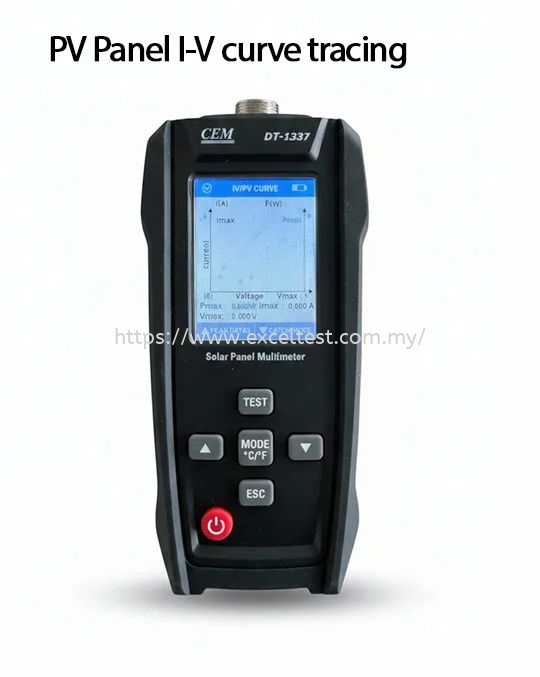

🔹 On‑Screen Graphing

• Real‑time graphical I‑V curve tracing directly on the device
• Supports analysis up to 800W per panel

🔹 PV Panel Connectivity

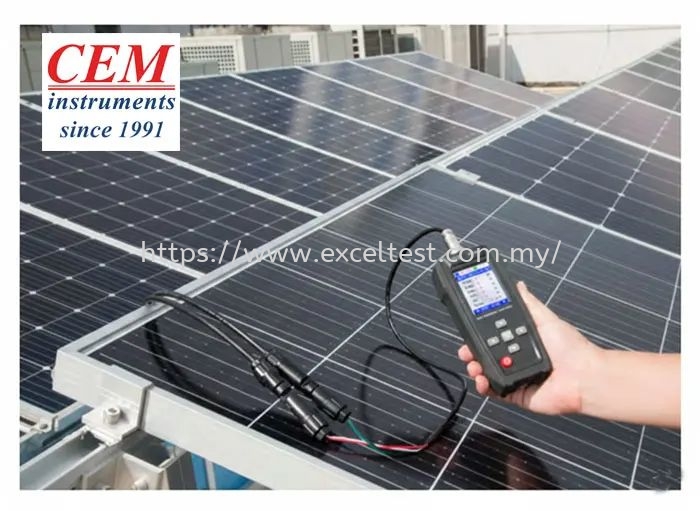

• Integrated MC4 PV plugs and alligator clips for direct, hassle‑free panel diagnosis

🔹 Equipment Self‑Protection

• Built‑in reverse protection, temperature protection, and overload protection

🔹 Display & Power Supply

• High‑contrast, large‑scale LCD optimized for direct sunlight viewing
• High‑capacity rechargeable lithium battery for extended field use

🔹 Applications
Perfect for solar panel installation, maintenance, troubleshooting, and quality assurance, the DT‑1337 ensures accurate diagnostics, reliable performance verification, and compliance with industry standards.

---



DT-1337 is mainly used to measure the maximum power generation of photovoltaic panels.
Under the same solar intensity, the higher the maximum power generation, the better the quality of photovoltaic pan- els. The color LCD display can read the data more clearly and intuitively under the light and reflect the curve characteristics of the data.



Features

The maximum generating power can reach 800W

Adjustable manual measurement mode and automatic measurement mode

Multiple protection circuit

High-precision measuring chip

With graphical data analysis



Specifications
Function	Range	Accuracy
Maximum power value (Pmax)	0 to 800W	±0.5%
Voltage at MPPT point (Vmax)	0 to 60V	±0.1%
Current at MPPT point (Imax)	0 to 35A	±0.1%
Open circuit voltage (Vopen)	0 to 60V	±0.1%
Short circuit current (Ishort)	0 to 35A	±0.1%
Instrument internal temperature	0 to 60oC	±3%

Size(HxWxD): 122mm x 72mm x 36mm
Weight: 206g
Accessories: 3.7V Li-battery, gift box with carrying case.
