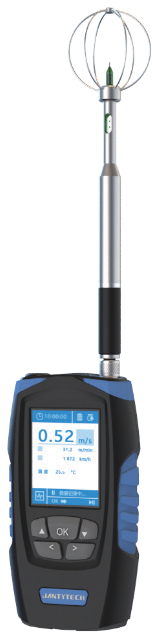

JT2023A Omnidirectional wind speed probe

Designed for High-precision omnidirectional low wind speed measurement, optional directional wind speed probe (retractable) to measure wind speed and wind temperature at the same time..

How to select right Air Flow measuremnet for Indoor Air Quality?
Omnidirectional  air flow meter is the right Air Movement Measurement tools according to COP 2002 (DOSH) measurement needs. Directional Air flow meter failed to measure total air flow from all directions.

JT2023A



High speed response

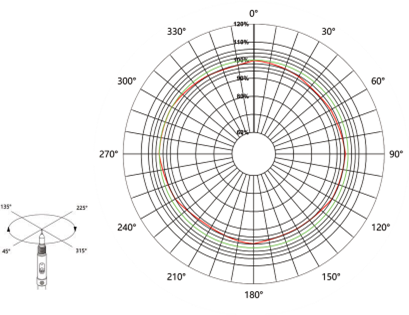

The omnidirectional wind speed probe has a very high response speed, the fastest can reach 200ms, can detect weakly changing airflow, and has perfect consistency in the horizontal direction, widely used in the measurement of biological safety cabinet wind speed, clean room wind speed, precision machining workshop etc.

JT2023 wind speed meter adopts thermal anemometer, its working principle is air cooling principle, you can choose omnidirectional (non-directional) (JT2023A type) or directional anemometer (JT2023B type), omnidirectional anemometer does not need to be rotated during measurement The correct reading can be obtained by the direction of the probe, and the directional wind speed probe needs to rotate the probe during measurement to find the maximum reading before reading the correct measurement value. JT2023 micro-anemometer is a precision product, which is widely used in occupational health, construction, industry, agriculture and other fields. , the probe can output wind speed and wind temperature at the same time.

FEATURES
High-precision low wind speed measurement, optional omnidirectional or directional wind speed probe (retractable) to measure wind speed and wind temperature at the same time
Real-time measurement curve display
Built-in high-capacity memory card, which can record massive measurement data
Built-in high-capacity lithium battery, the standby time is up to 48 hours (JT2023B type), the unit is automatically converted, and m/s, m/min, km/h are displayed at the same time

Wide application for Works place, factory and workshop ventilation efficiency measurement Omnidirectional wind speed: clean room airflow control; high-precision airflow measurement in biological safety cabinets; public Site airflow disturbance measurements.

Built-in high-capacity memory card, no need to worry about data storage limitations
Precise measurement probe, capable of meeting most high-precision measurement requirements. The supporting software will provide more analysis for measurement results.

JTSOFT-MT
Data processing software
JT2023 wind speed Meter, the PC Data processing
software adopts JTSOFT-MT, which can realize the export of the saved data of the instrument, import the existing data files on the PC side into the software, draw historical time curves, perform data statistics, and generate test reports.

Datasheet



Parameter                                                                  Technical indicators

Model	JT2023A Anemometer	JT2023B Anemometer
Schematic
Measurement range	0~10m/s	0~20m/s
Measurement accuracy	0.05~2.0m/s ±(0.05m/s+2% of reading) 2.0~10.0m/s                        ±(0.1 m/s±2% of reading)	±(0.1m/s±2% of reading）
Resolution	0.01m/s
Sensor type	hot bulb
Units	m/s，m/min，km/h show at the same time
Temperature range	-20~70°C
Temperature accuracy	±0.5°C
Temperature resolution	0.1℃
Telescopic rod range	Fixed length	20-80cm
Battery Life	36 hours of continuous measurement	48 hours of continuous measurement
Storage interval	Adjustable from 1 second to 60 minutes
Display	3.5-inch LCD display, which can display measurement values and measurement curves
Measurement standard	wind speed, temperature
Data storage	Removable SD memory card
Data transfer interface	micro USB
Software	JTSOFT-MT
Language options	中文/English
Physical dimension	175X92X38mm
Weight (g)	About 350g (main unit)
Use environment	-10~60℃，0~95%RH
Storage environment	-20℃~60℃，0~95%RH
Standard configuration	Host, anemometer, software USB data cable, instrument case
